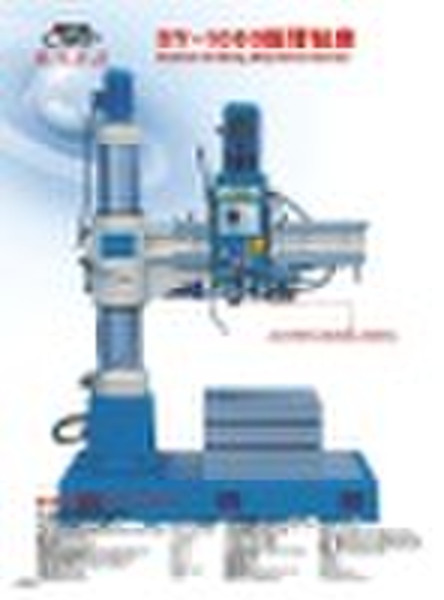

SY-1000 Radial Drilling Machine

SY-1000 Radial Drilling Machine Avoid to punch the side and break spindle. Rapid retract cutter. Specification Of Machine Column guide way to spindle center350mm 1000mmSpindle drive motor 3HP 1410rpmRadial elevating motor 0.40kw 695rpm Spindle end to basic bottom 330mm 1100mm Spindle speed 6speed (75,136,254,368,681,1250) Column dia. Φ220mmWork ability 45#--Drilling Φ42 Tapping M20 Machine height 2200mm cast iron--Drilling Φ45 Tapping M25 Spindle travel right to left 680mmSpindle feed range 3speed(0.05 0.09 0.16) Radial elevating travel 560mm N.W. 1400kg Spindle elevating travel 210mm G.W. 1520kg Spindle hole Mohs4#Machine dimensions 1600×800mm Spindle dia. Φ68 Package size 1700×850×2200mm
