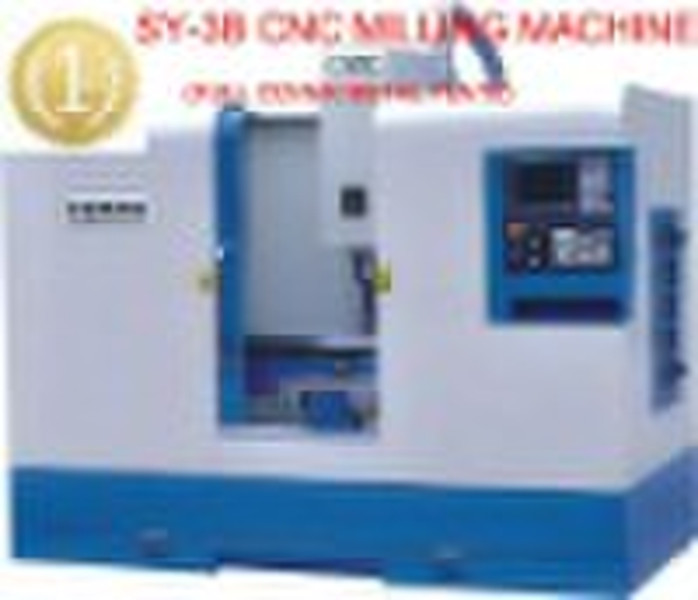

SY-3B CNC Milling Machine(Full Cover Metal Plate)

ITEMS SY-3B CNC SY-3B-A CNC XYZ travel 600×400×400 800×400×400 Spindle nose to table surface 100 500 100 500 Table size 1000×410 1270×410 T slot(width×distance×qty.) 18×100×3 18×100×3 Table max. load 250kg 200kg XYZ spindle drive Servo motor Servo motor XYZ spindle rapid power feed 8000mm/min 8000mm/min Spindle power 5kw 5kw Spindle max. speed 8000rpm 8000rpm Spindle taper BT40 BT40 Controller Mitsubishi E60S Mitsubishi E60S Require air pressure 5kg/cm² 5kg/cm² Require drive 7KVA 7KVA Machine weight 2800kg 2900kg
