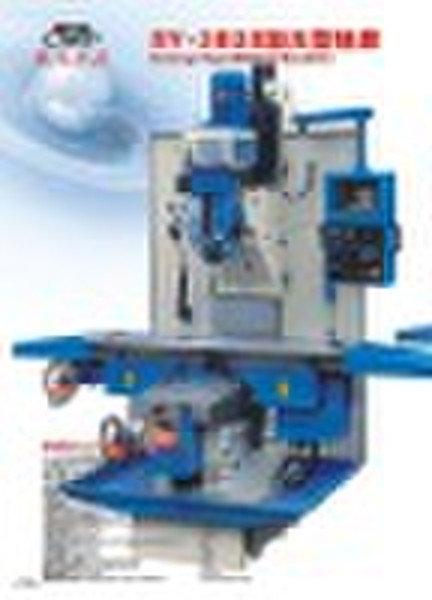

SY-3B2S Enlarge Type Milling Machine
Miya Lan
Contact person
Basic Information
spindle cutter vertical ---------------------------------------------------------------------------------- SY-3B2S Enlarge Type Milling Machine •7H Milling Head SY-3B2S Enlarge Type Milling MachineSpecification Of MachineTable size1525×340 mmLongitudinal travel (X)1100mmCross travel (Y)400 mmVertical travel (Z)500 mmQty of T slots3Size of T slot16mm(5/8″)Spindle taperNT40Spindle speed10 speed (70 2800 rpm)Spindle center to column surface400mmSpindle nose surface to table surface120+500mmPower feed0.038/0.076/0.152/revSpindle travel150mmVertical milling head tilt angle(R & L)90°Spindle motor5HPCooling motor1/8HPAuto lubricate AC motor3WRapid elevating motor (Z)1/2HPMachine weight2530 kgPackage(length×width×highness)2400×1500×2150mm
Delivery terms and packaging
Packaging Detail: Iron Tray,Wooden Crate. Delivery Detail: 30 60 days after 100%T/T
Port: Xia Men
Payment term
Letter of credit
Telegraphic transfer
-
