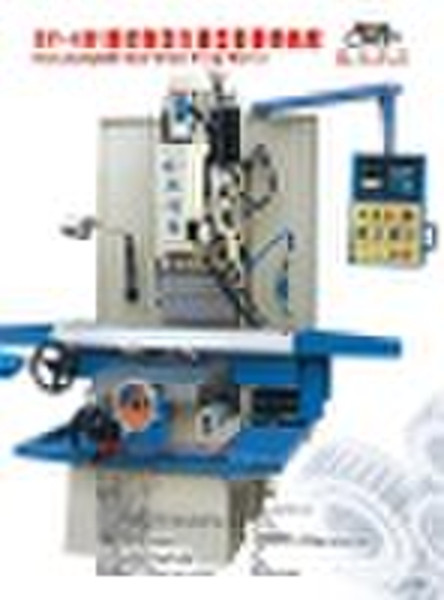

SY-4B1 Heavy Cut Spindle Gear-driven Milling Machi
Miya Lan
Contact person
Basic Information
gear-driven Heavy Cut ------------------------------------------------------------------------------------- SY-4B1 Heavy Cut Spindle Gear-driven Milling MachineSpecification Of MachineTable size1270 mm×410 mmLongitudinal travel (X)1000 mmCross travel (Y)520mmVertical travel (Z)440 mmQty of T slots3Size of T slot18 mmSpindle taperNT40Spindle speed16 speed (62 3000 rpm)Spindle center to column surface540mmSpindle nose surface to table surface90+440mmSpindle motor5HPPower feed400W Speed reducerPower feed speed20 800mm/2000mm(Rapid power feed)Cooling motor1/8HPAuto lubricate AC motor3WRapid elevating motor (Z)1/2HPMachine weight3500 kgPackage(length×width×highness)2450×1500×2440mm
Delivery terms and packaging
Packaging Detail: Iron Tray,Wooden Crate. Delivery Detail: 30 60 days after 100%T/T
Port: Xia Men
